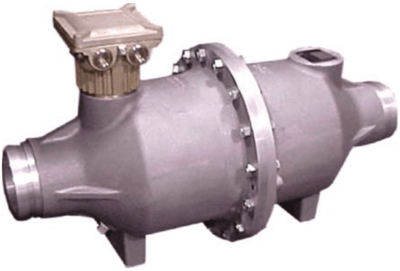

Brodie Non-Ferrous Birotor Plus Meter

Price
Request a Quote
Stock
In Stock
Description
  • Connections: 3" (76.20 mm) Victaulic
  • Maximum Safe Working Pressure: 200 psi (1378 kPa)
  • Maximum Safe Working Temperature: -20°F to 180°F (-29°C to 82°C)
  • Standard Flow: 43 - 425 GPM (163 - 1609 LPM)
  • Extended Flow Range:
    • Minimum: 30 GPM (114 LPM)
    • Intermittent Maximum: 550 GPM (2082 LPM)
  • Connections: 3" (76.20 mm) Victaulic
  • Maximum Safe Working Pressure: 200 psi (1378 kPa)
  • Maximum Safe Working Temperature: -20°F to 180°F (-29°C to 82°C)
  • Standard Flow: 43 - 425 GPM (163 - 1609 LPM)
  • Extended Flow Range:
    • Minimum: 30 GPM (114 LPM)
    • Intermittent Maximum: 550 GPM (2082 LPM)

Specifications

Enclosure, Body Material

  • Cast Aluminum

Materials of Construction

  • Rotor Bearings: Hybrid Ceramic
  • Rotor Shaft: 630 (17-4 Ph) Stainless Steel
  • Rotors: Cast Aluminum, Hard Anodized

O-Ring Material

  • Viton

Repeatability

  • ± 0.02 %

Linearity

  • ± 0.1 % or better over 20:1 flow range

Electrical

  • Dual channel preamplifi er
  • Single or dual, non-wetted, reluctance pick-offs

Supply Voltage

  • 10 to 30 Vdc

Sensor Type

  • Reluctance

Type

  • Sine Wave

Amplitude

  • 40 mV peak to peak minimum

Powered Pulse Output

  • Type: Square Wave
  • Frequency Range: 0 to 5 kHz
  • Amplitude : 0 to 5 V
  • 1 kOhm interval pull-ups, 20 mA max.

Variable Voltage Output

  • Type: Square Wave
  • Frequency Range: 0 to 5 kHz
  • Amplitude: 0 to Supply Voltage
  • 1 kOhm internal pull-ups, 70 mA max.

Open Collector Output (Per Channel)

  • Type: Square Wave
  • Frequency Range: 0 to 5 kHz
  • Maximum Voltage: 30 Vdc
  • Maximum Current: 125 mA
  • Maximum Power: 0.5 watts

Temperature

  • -20 to 180° F (-29 to 82° C)

Pick-off Temperature

  • -20 to 180° F (-29 to 82° C)
