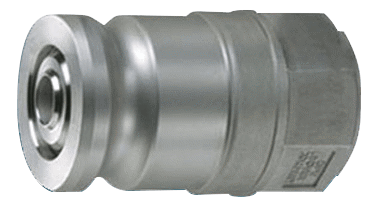

1600AN Series Kamvalok Adaptor

Brand: OPW Engineered Systems
The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok® Couplings to help prevent liquid spillage during the connection/disconnection process.

The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.
Features
  • Available In 1 ½”, 2” and 3” Sizes
  • Heavy-duty Construction - Available in Aluminum, and Stainless Steel Construction: Stainless Steel Corrosion Resistance Comparable to 316 Stainless Steel
  • Female Threads - can be Fitted to Either a Male Pipe End or to a Hose Fitting
  • Spring-loaded Poppet Design - Assures Fast Closing and a Tight Seal
  • Wide Range of Seals Available - Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
  • Single Piece Design Eliminates a Possible Leak Path
  • Poppet-actuated Design can Only be Opened with a Kamvalok® Coupling; Designed to Provide a Tight Seal when Closed
  • The Simple Spring-loaded Poppet Design and Heavy-duty Construction Provide for Reliable, Long-life Operation
  • Even Flow and Low Pressure Drop are Achieved by a Built-in Deflector that Reduces Turbulence
show more
The 1600AN Series Adaptor is specifically designed to mate with OPW Kamvalok® Couplings to help prevent liquid spillage during the connection/disconnection process.

The adaptor contains a spring-loaded poppet to assure fast closing and a tight seal.
Features
  • Available In 1 ½”, 2” and 3” Sizes
  • Heavy-duty Construction - Available in Aluminum, and Stainless Steel Construction: Stainless Steel Corrosion Resistance Comparable to 316 Stainless Steel
  • Female Threads - can be Fitted to Either a Male Pipe End or to a Hose Fitting
  • Spring-loaded Poppet Design - Assures Fast Closing and a Tight Seal
  • Wide Range of Seals Available - Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
  • Single Piece Design Eliminates a Possible Leak Path
  • Poppet-actuated Design can Only be Opened with a Kamvalok® Coupling; Designed to Provide a Tight Seal when Closed
  • The Simple Spring-loaded Poppet Design and Heavy-duty Construction Provide for Reliable, Long-life Operation
  • Even Flow and Low Pressure Drop are Achieved by a Built-in Deflector that Reduces Turbulence

Specifications

AAR Numbers

  • E129504: 1600AN Series Kamvalok Adpater - Threaded
  • E129505: 1600ANF Series Kamvalok Adapter - Flanged
  • E129507: 634B/733DCL Series Kamlok/Autolok Dust Caps

CRN Numbers

  • OA4911.52 -  Alberta - 1.5”, 2”, 3” Aluminum and SST Kamvalok
  • OA4911.5R1 - Ontario - 1.5”, 2”, 3” Aluminum and SST Kamvalok
