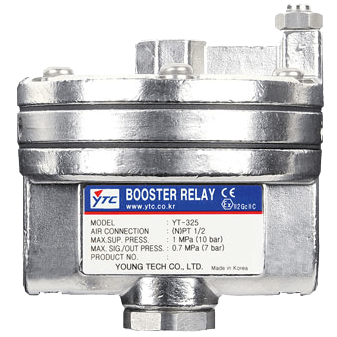

YT-325 Volume Booster

Brand: Rotork YTC
The YT-325 Volume Booster Relay is used in a pneumatic control valve that receives the output signal from the position and supplies air pressure to the actuator to reduce the opening and closing times of the valve.
Features
  • Supply/Outlet Connection: 1/2" NPT
  • Signal Connection: 1/4" PT or NPT
  • Signal and Output Pressure
    • psig: 101
    • bar: 7
    • kPa: 700
    • MPa: 0.7
  • Supply Pressure
    • psig: 145
    • bar: 10
    • kPa: 1000
    • MPa: 1
  • Pressure Ratio: 1:1 Signal: Output
  • Flow Capacity
    • Exhaust: 2.08 Cv
    • Output: 2.72 Cv
  • Material of Construction: Stainless Steel
  • Temperature Ranges
    • -20° to +70° C  (-4° to +158°F )
    • -20° to +120° C  (-4° to +248° F)
    • -40° to +70° C  (-40° to +158° F)
The YT-325 Volume Booster Relay is used in a pneumatic control valve that receives the output signal from the position and supplies air pressure to the actuator to reduce the opening and closing times of the valve.
Features
  • Supply/Outlet Connection: 1/2" NPT
  • Signal Connection: 1/4" PT or NPT
  • Signal and Output Pressure
    • psig: 101
    • bar: 7
    • kPa: 700
    • MPa: 0.7
  • Supply Pressure
    • psig: 145
    • bar: 10
    • kPa: 1000
    • MPa: 1
  • Pressure Ratio: 1:1 Signal: Output
  • Flow Capacity
    • Exhaust: 2.08 Cv
    • Output: 2.72 Cv
  • Material of Construction: Stainless Steel
  • Temperature Ranges
    • -20° to +70° C  (-4° to +158°F )
    • -20° to +120° C  (-4° to +248° F)
    • -40° to +70° C  (-40° to +158° F)
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE
  • SIL 3

Enclosure, Body Material

  • 316 Stainless Steel

Flow Capacity

  • Exhaust: 2.08 Cv
  • Output: 2.72 Cv

Independent Linearity

  • ± 1 % of Full Scale

NPT Connection

  • 1/2" NPT Female

Ratio

  • 1:1

Signal or Output Pressure - Maximum

  • bar: 7
  • kPa: 700
  • MPa: 0.7
  • psig: 101

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • MPa: 1
  • psig: 145
