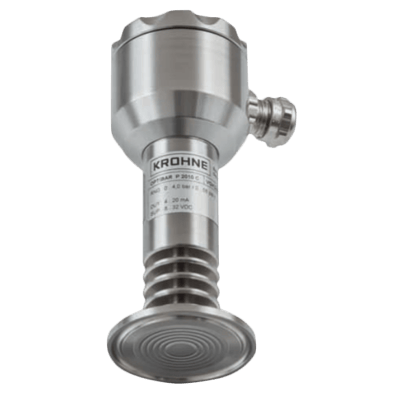

OPTIBAR P 2010 C Hygienic Pressure Transmitter

Brand: Krohne
Request Information
The OPTIBAR P 2010 C pressure transmitter was specifically designed with the requirements of both the food and pharmaceutical industries in mind.

It is perfectly suited for cavity-free instrumentation, providing a repeatable measuring signal that is stable over the long term, even with regular SIP/CIP cleaning, while simultaneously guaranteeing a high degree of chemical resistance to process and cleaning solutions.

The modular design of the device makes it possible to combine a wide range of fully welded process connections with a variety of filling media and electrical connections in a way that can accommodate virtually any industrial hygienic process technology requirement.

Additional cooling fins can be added at any time for process temperatures higher than 150° C (302° F).
show more
The OPTIBAR P 2010 C pressure transmitter was specifically designed with the requirements of both the food and pharmaceutical industries in mind.

It is perfectly suited for cavity-free instrumentation, providing a repeatable measuring signal that is stable over the long term, even with regular SIP/CIP cleaning, while simultaneously guaranteeing a high degree of chemical resistance to process and cleaning solutions.

The modular design of the device makes it possible to combine a wide range of fully welded process connections with a variety of filling media and electrical connections in a way that can accommodate virtually any industrial hygienic process technology requirement.

Additional cooling fins can be added at any time for process temperatures higher than 150° C (302° F).
Close
Close

Specifications

Brand

Ambient Pressure

  • psi: 14.5 (kPa: 100, bar: 0.1)

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)
  • Ex I from Zone 1: -20° to 70° C (-4° to 158° F)
  • Ex I Zone 0: -20° to 60° C (-4° to 140° F) at Absolute Pressure 0.8 to 1.1 bar

Applications

  • Absolute & Gauge Pressure Measurement, without Cavities, in Gases & Liquids
  • Food & Beverage
  • General Sterile Process Technology
  • Pharmaceutical Industry
  • Viscous & Crystallising Media

Approvals & Certifications

  • 3A
  • ATEX II 1 G Ex ia IIC T4 or II 1D Ex ia T85° C
  • CE
  • EMC Directive: 2004/108/EC According to EN 61326
  • FDA
  • IEC Ex ia IIC T4 Ga or Ex ia IIIC T85° C Da

Approvals & Certifications

  • DAkkS & 5-Point Factory Calibration Certificate
  • SIL 2 Certification

BSP Connection

  • ISO 228 G 1” Male, DIN 3852, Cone (PN ≥ 600 Mbar)
  • ISO 228 G 1/2” Male, DIN 3852 (PN ≥ 1 bar / 14.5 psi)
  • ISO 228 G 3/4” Male, DIN 3852 (PN ≥ 600 Mbar / 8.7 psi)

Burst Pressure

  • psi: 21.8 to 3,046 (kPa: 150 to 21,000, bar: 1.5 to 210)

Cable Length

  • 6 feet (2 metres)

Diaphragm Material

  • Hastelloy C-276 (2.4819)
  • Separating Diaphragm: 316L Stainless Steel (1.4435)

Electrical Connectors

  • M12 x 1, 4-Pin
  • M12 x 1.5
  • M16 ISO 4400
  • Polyurethane (PUR) Cable with Venting
  • Standard Polyurethane (PUR) Cable
  • Thread M12

Electrical Protection

  • Reverse Polarity Protection
  • Short Circuit Protection (Continuously)

Enclosure, Body Material

  • 316L Stainless Steel
  • Field Housing: AISI 304 Stainless Steel, 1.4301

Environmental Protection

  • Ingress Protection up to IP68
  • IP65
  • IP67

Fill Material

  • Food Grade Oil with FDA Approval (Mobil DTE FM 32, Category Code: H1, NSF Registration No.: 130662)
  • Silicone Oil

Gasket Material

  • FFKM [Medium Temperature > 200° C (392° F)]
  • FKM [Medium Temperature ≤ 200° C (392° F)]

Gland Material

  • Cable Gland: Nickel-Plated Brass

Input

  • Ex I: 28 V
  • Ex I: 93 mA

Input Power

  • Ex I: 660 mW

Measurement Accuracy

  • Nominal Pressure (PN) 0.4 bar / 5.8 psi: ≤ ± 0.25 % of URL

Media

  • Air

Mounting Position

  • Any - Factory Calibration Carried Out with Pressure Port Down

Nominal Pressure

  • psi: -14.5 to 580 (kPa: -100 to 4,000, bar: -1 to 40)

Operating Pressure

  • psi: 7.3 to 1,523 (kPa: 50 to 10,500, bar: 0.5 to 105) - Max.

Output

  • 4-20 mA, 2-Wire

Pipe Connection

  • 1” Pipe (DN 25), DIN 11851 Dairy Pipe (PN ≥ 250 Mbar)
  • 1-1/2” Pipe (DN 40), DIN 11851 Dairy Pipe
  • 2” Pipe (DN 50), DIN 11851 Dairy Pipe

Power Supply

  • 24 Vdc
  • 8-32 Vdc
  • Ex I: 10-28 Vdc

Pressure Range

  • bar: -1 to 40
  • kPa: -100 to 4,000
  • psi: -14.5 to 580

Pressure Type

  • Absolute
  • Gauge

Process Temperature

  • Food Grade Oil: -10° to 125° C (14° to 257° F)
  • Gauge Pressure P > 0 bar: 150° C (302° F) - Max.
  • PN 0 barg: -10° to 250° C (14° to 482° F) - Food Grade Oil with Cooling Fins
  • PN > 0 barg: -40° to 300° C (-40° to 572° F) - Silicone Oil with Cooling Fins
  • Silicone Oil: -40° to 125° C (-40° to 257° F)

Response Time

  • Step Response Time: < 10 milliseconds (T90)

Seat / Seal Material

  • Seal: FFKM [Process Temperature > 200° C (392° F)]
  • Seal: FKM [Process Temperature ≤ 200° C (392° F)]

Service

  • Oil & Fat-free Cleaning

Shock

  • Shock Resistant (Impact) According to EN 60068-2-27: 100 G/1 millisecond

Stability

  • Long Term Stability: ≤ ± 0.1 % of URL within 1-Year Under Reference Conditions

Storage Temperature

  • -40° to 100° C (-40° to 212° F)

Temperature Effect

  • Nominal Pressure (PN) 0.4 bar / 5.8 psi: ≤ ± 0.75 % of URL in Compensated Range of -20° to 85° C (-4° to 185° F) - Ambient Temperature Effect on Zero & Span

Temperature Range

  • Nominal Temperature: -20° to 80° C (-4° to 176° F)

Tri-Clamp Connection

  • 1” Tri-Clamp, DIN 32676 / ISO 2852 (PN ≥ 250 Mbar), 3A Approved
  • 1-1/2” Tri-Clamp, DIN 32676 / ISO 2852, 3A Approved
  • 2” Tri-Clamp, DIN 32676 / ISO 2852, 3-A Approved
  • 3/4” Tri-Clamp, DIN 32676 / ISO 2852 (PN ≥ 2.5 bar), 3-A Approved

Vibration

  • Vibration Resistance According to EN 60068-2-6: 10 G RMS at 25 to 2,000 Hz
  • Vibration Resistance According to EN 60068-2-6: 20 G at 25 to 2,000 Hz (G 1/2”)

Voltage

  • Ripple: 0.05 % of URL / 10 V

Wetted Materials

  • 316L Stainless Steel
