Description

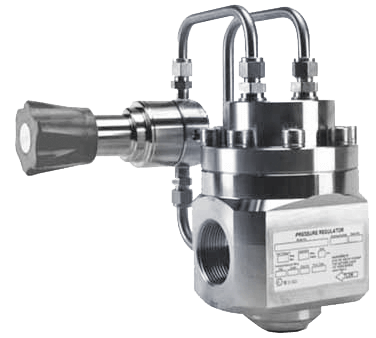

These pressure-reducing, dome-loaded and air-loaded regulators are suitable for most gases and liquids, including acids and oils.
These regulators feature various poppet designs, a pressure-sensing diaphragm, and a choice of seat and seal materials to accommodate a variety of pressure, temperature, and flow conditions.
The RDH series regulators are high-pressure versions of the RD series regulators.
Features- Balanced poppet design
- Diaphragm sensing
- Integral pilot regulator with dynamic regulation
- Dome-to-outlet pressure ratio approximately 1:1
- Large dome for improved stability
- Pilot regulator for improved performance
- External feedback (EF) for improved performance
- EF to main regulator limited by standard outlet pressure range
- EF to pilot regulator limited to 290 psig (20.0 bar)
- Maximum Inlet Pressure
- RD - psig: 1,015 psig (bar: 70, kPa: 6,998); psig: 507 (bar: 35, kPa: 3,496) with LRS4 pilot regulator
- RDH - psig: 5,800 (bar: 400, kPa: 39,990)
- Maximum Outlet Pressure:
- RD - psig: 1,015 (bar: 70, kPa: 6,998)
- RDH - psig: 3,625 (bar: 250, kPa: 24,990)
- Sensing Type: Diaphragm
- Temperature Range: -20 to 80°C (-4 to 176°F)
- Flow Coefficient: 3.79, 7.30 Cv
- Connections:
- Inlet/Outlet: 1 to 1.5 " NPT, ISO/BSP Parallel Thread, EN or ASME Flange
- Gauge: 1/4" NPT or ISO/BSP Parallel Thread
- Dome: 1/4" ISO/BSP Parallel Thread
- Materials of Construction:
- Dome: 316L Stainless Steel
- Poppet: 316L Stainless Steel
- Body: 316L Stainless Steel
- O-Ring: EPDM, FKM, Nitrile
- Diaphragm: EPDM, FKM, Nitrile
- Seat Seal:
- RD - Fluorocarbon FKM, Nitrile, EPDM
- RDH - PCTFE, PEEK
Configure
Specifications
Specifications
Brand
Ambient Temperature Range
- -20° to 80° C (-4° to 176° F)
BSP Connection
- 1" BSPP Female (ISO)
- 1-1/2" BSPP Female - ISO
Diaphragm Material
- EPDM
- FKM
- Nitrile
Dome
- 316L Stainless Steel
Enclosure, Body Material
- 316L Stainless Steel
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - 150#
- 1-1/2" (DN 40) - 1500#
- 1-1/2" (DN 40) - 2500#
- 1-1/2" (DN 40) - 300#
- 1-1/2" (DN 40) - 600#
- 1-1/2" (DN 40) - PN 16
- 1-1/2" (DN 40) - PN 40
Flange Size - 1” (DN 25)
- 1" (DN 25) - 150#
- 1" (DN 25) - 1500#
- 1" (DN 25) - 2500#
- 1" (DN 25) - 300#
- 1" (DN 25) - 600#
- 1" (DN 25) - PN 16
- 1" (DN 25) - PN 40
Flange Type
- Raised Face Smooth
- RTJ - Ring Typical Joint
Flow Rate
- 3.79 Cv
- 7.30 Cv
Media
- Gas
- Liquids & Gases
NACE & NIST
- NACE MR-0175, ISO 15156
NPT Connection
- 1" NPT Female
- 1-1/2" NPT Female
O-Ring Material
- Ethylene Propylene (EPR)
- Fluorocarbon (FKM)
- Nitrile
Poppet Material
- 316L Stainless Steel
Pressure Range
- bar: 70 to 250
- kPa: 6,998 to 24,990
- psig: 1,015 to 3,625
Seat / Seal Material
- 316L Stainless Steel
- EPDM
- Fluorocarbon (FKM)
- Nitrile
- PCTFE
- PEEK
Special Cleaning & Packaging
- ASTM G93 Level C-Cleaned
- Not Required
Supply Pressure - Maximum
- bar: 35 to 400
- kPa: 3,496 to 39,990
- psig: 507 to 5,800
