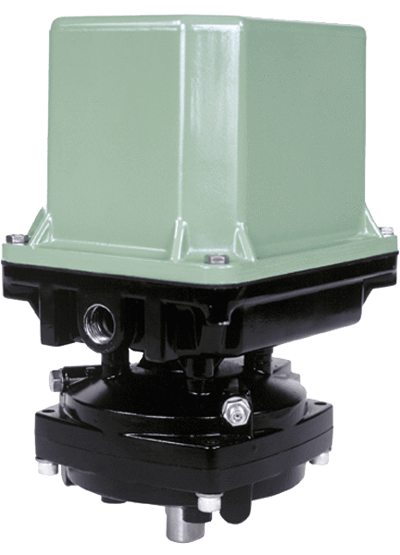

Sure 24/25 Spring-Return Electric Actuator

Brand: RCS Actuators
The Industry Leader in Spring-Return Actuators for Critical Isolation Service.

When quarter-turn and modulating emergency shutdown or shutoff capability is required.

Available in both regular and high-temp configurations for your most challenging application.
The Industry Leader in Spring-Return Actuators for Critical Isolation Service.

When quarter-turn and modulating emergency shutdown or shutoff capability is required.

Available in both regular and high-temp configurations for your most challenging application.
Close

Displaying prices & availability for Ohio, United States 43201 in USD. Change location.

Models matching criteria: 3
Sure 25-5
Sure 24/25 Spring-Return Electric Actuator - Electrical Speed, 5 seconds/90°
Out of Stock
Sure 25-10
Sure 24/25 Spring-Return Electric Actuator - Electrical Speed, 10 seconds/90°
Out of Stock
Sure 24-10
Sure 24/25 Spring-Return Electric Actuator - Electrical Speed, 10 seconds/90°
Out of Stock
Close

Specifications

Brand

Temperature Range

  • Standard: -40° to +150° F
  • Optional: -60° to +150° F

Voltage

  • 115 Vac, 1-Phase, 50/60 Hz
  • 230 Vac, 1-Phase, 50/60 Hz

Torque Range

  • 30- pound inches spring end

Speed Range

  • 5 and 10 seconds for 90° revolution

Spring

  • Helical torsion spring, spring steel, XYLAN® coated
Close

Applications

For on/off and modulating control of:
  • Part turn ball, butterfly, plug valves or rotary dampers when emergency shutdown or shutoff capability is required in the event of a loss of power.
