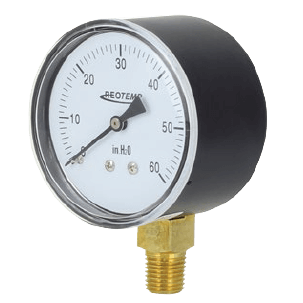

Series PC25N2/S2 2.5" General-Purpose Low Pressure Gauge

Brand: REOTEMP Instruments Corporation
REOTEMP’s Series PC25N2 brass gauges are designed for use in low pressure applications with dry gasses that are compatible with copper alloy.

Examples include: exhaust systems and blowers.
Features
  • Sensitive Diaphragm/Capsule Mechanism
  • Easy-Access Zero Reset Screw on Dial
  • Economical Design for Non-Severe Service
  • ASME B40.100 Design
REOTEMP’s Series PC25N2 brass gauges are designed for use in low pressure applications with dry gasses that are compatible with copper alloy.

Examples include: exhaust systems and blowers.
Features
  • Sensitive Diaphragm/Capsule Mechanism
  • Easy-Access Zero Reset Screw on Dial
  • Economical Design for Non-Severe Service
  • ASME B40.100 Design
Close

Specifications

Brand

Dial Size

  • 2.5" (63 mm)

Accuracy

  • 3-2-3 %, ASME Grade B

Maximum Working Pressure

  • Momentary = 130 % of Scale
  • Stable = 100 %

Ambient Temperature

  • -40° to 60° C (-40° to 140° F)

Process Temperature

  • -40° to 60° C (-40° to 140° F)

Approvals & Certifications

  • ASME B40.100

Pressure Range

  • bar: 0 to 0.34
  • inH₂O: 0 to 200
  • kPa: 0 to 34.47
  • psi: 0 to 5

Lens

  • Glass
  • Plastic

Pressure Type

  • Gauge
  • Vacuum
  • Compound

NPT Connection

  • 1/4" NPT Male

Material of Construction

  • White Aluminum Dial with Black Letters
  • Case: Black Painted Steel
  • Ring: Snap-In Plastic

Mounting

  • Bottom Mounting
  • Bottom / Rear Flange Mounting
  • Center Back 'U' Clamp Mounting
  • Center Back Mounting
  • Center Back / Front Flange Mounting

Wetted Materials

  • Copper Alloy

Fill Material

  • Dry
