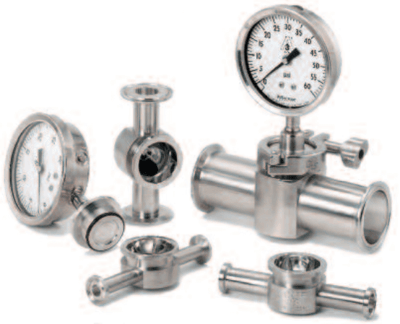

Images are representations only.

1036 In-Line Sanitary Pressure Gauge

Brand: Ashcroft Inc
The Ashcroft 1036 inline sanitary gauge satisfies stringent sanitary requirements with its unique design.

Mated with the type 1037 Inline fitting, this assembly virtually eliminates process deadleg, assuring contamination is minimized.

An ideal product for reliability and process integrity.
Features
  • All-welded stainless steel wetted surfaces
  • Field liquid-fillable gauge case
  • True zero pointer indication
  • PowerFlex movement for extended life
  • Easy Zero external pointer adjustment standard
  • Retrofits Anderson Instrument CPM design
show more
The Ashcroft 1036 inline sanitary gauge satisfies stringent sanitary requirements with its unique design.

Mated with the type 1037 Inline fitting, this assembly virtually eliminates process deadleg, assuring contamination is minimized.

An ideal product for reliability and process integrity.
Features
  • All-welded stainless steel wetted surfaces
  • Field liquid-fillable gauge case
  • True zero pointer indication
  • PowerFlex movement for extended life
  • Easy Zero external pointer adjustment standard
  • Retrofits Anderson Instrument CPM design
Close

Displaying price & availability for United States in USD Change location

TYPE 1036
  • Dial Size - 3-1/2"
  • System - Stainless Steel
  • Fill Material - Glycerine
  • Connection Size - 1.5" Seal
  • Connection Location - Lower
  • Options - Without
  • O-Ring - Buna-N
  • Window Material - Polycarbonate
  • Performance - Standard
  • Range - 0 to 15 psi
Out of Stock
Close
Close

Specifications

Brand

Accuracy

  • 1.5 % of Full Scale for Pressure Ranges 100 psi & above
  • 2 % of Full Scale for Vacuum, Compound & Ranges Below 100 psi

Approvals & Certifications

  • 3A Sanitary 74
  • ISO 9001

Diaphragm Material

  • 316L Stainless Steel, Electro-Polished 12 to 20 RA

Enclosure, Body Material

  • 304 Series Stainless Steel

Fill Material

  • System: USP Food Grade Glycerin

Lens

  • Window: Polycarbonate Lens
  • Window: Polysulfone

Materials of Construction

  • Bourdon Tube & Socket: 316L Stainless Steel
  • Pointer: Black-Painted Aluminum with External Zero Adjust

Movement

  • 300 Series Stainless Steel

O-Ring Material

  • Diaphragm O-Ring: Buna-N
  • Diaphragm O-Ring: Viton

Pressure Range

  • bar: 1 to 41.3
  • kPa: 103.4 to 4,137
  • psi: 15 to 600

Pressure Type

  • Compound Pressure
  • Gauge
  • Vacuum

Ring Material

  • 304 Series Stainless Steel (Bayonet, Removable)

Size

  • Dial: 3.5” (89 mm)

Temperature Range

  • Autoclave or Sterilize: 149° C (300° F) when Supplied with Polysulfone Window
  • Clean or Steam in Place (CIP or SIP): 138° C (200° F)

Tri-Clamp Connection

  • 1-1/2” Sanitary Clamp
Close

Typical Applications

  • Biotechnology
  • Filtration Systems
  • Food & Dairy
  • Medical Equipment
  • OEM Equipment
  • Pharmaceuticals
