Description

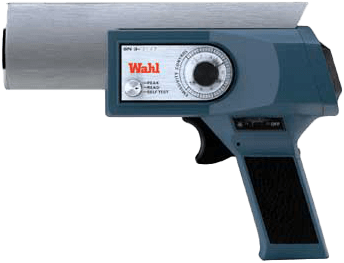

The DHSA24 High Performance Heat Spy features superior accuracy and sensitivity between 0° to 1000°F (-20 to 550°C).
Accuracy is ±0.3% of full scale.
Repeatability of ±1°F. LED Display.
Anti-reflective filter for accurate use in strong sunlight or other light sources.
Applications include all normal materials, including glass surfaces.
The DHSA24 is not affected by IR heaters, carbon dioxide or water vapor, and will not measure through glass. 8 to 14 Microns.
Enclosed Optical Sight.
3 Year Warranty.
Features- Superior Accuracy and Sensitivity Between 0° to 1000°F (-20° to 550°C)
- Accuracy of ±0.3% of Full Scale
- Repeatability of ±1°F
- Enclosed Optical, Closed Laser, or Telescopic Sighting Options
- Anti-Reflective Filter For Accurate Use in Strong Sunlight or Other Light Sources
- Applications Include All Normal Materials, Including Glass Surfaces
- Not Affected by IR Heaters, Carbon Dioxide or Water Vapor. Will Not Measure Through Glass
- 3 Year Warranty
Inventory
Displaying price & availability for Virginia, United States in USD Change location
8 models matching criteria
HP Heat Spy, LED, 8 to 14 Microns, 0 to 1000°F Non Contact Thermometer
Out of Stock
High Performance Heat Spy, LED, 8 to 14 Microns, 0 to 1000°F (-20 to 500°C), Laser Sight, 1mW
Out of Stock
High Performance Heat Spy, LED, 8 to 14 Microns, 0 to 1000°F (-20 to 550°C) Laser Sight, 5mW
Out of Stock
High Performance Heat SPy, LED, 8 to 14 Microns, 0 to 1000°F (-20 to 550°C), Telescopic Sight
Out of Stock
High Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 1000°F (-20 to 550°C), Laser Sight, 1mW
Out of Stock
High Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 1000°F (-20 - 550°C), Laser Sight, 5mW
Out of Stock
High Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 1000°F (-20 to 550°C), Telescopic Sight
Out of Stock
High Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 1000°F (-20 to 500°C), Enclosed Optical Sight
Out of Stock
Specifications
Specifications
Temperature Range
- 0° to 1000° F
- -20° to 550° C
Distance to Spot Ratio
- 20:1
Spectral Range
- 8 to 14 µm
Emissivity
- Adjustable 0.2 - 1.0
Accuracy at 77° F ±5°
- ± 0.3 % Full Scale
Repeatability
- ± 1° F
Resolution
- 1° F / °C
Response Time to 95% of Reading
- 1 second
Operating Temperature
- 25° to 125° F (-4° to 52° C)
Temperature Coefficient
- ± 0.1 deg/deg
Practical Working Distance
- 0 to 40 feet
Sighting System
- Enclosed, Laser, or Telescope
Output to Recorder
- 1 mV/deg.
Power Supply
- LCD 1 - 9 V Alkaline Battery, LED 2 - 6 V Batteries
Battery Life
- 40 hours Laser Operation Will Reduce Battery Life
Weight (Lbs)
- 2.2 lbs (0.99 kg)
Included Accessories
- User Manual, LCD, 1-9 V Battery, LED, 2-6 V Alkaline Batteries, Carrying Case, Trigger Lock, AC Adapter (Specify 110 V or 220 Vac)
