Description

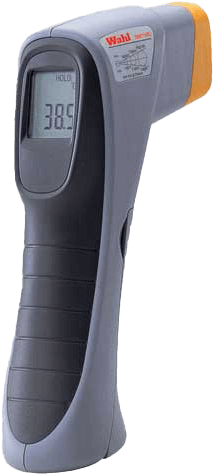

Wahl's Brand New Hand-Held Infrared Thermometers!
America's most innovative thermometer company.
Palmer Wahl, manufactures precision temperature instruments.
Wahl was the first to bring the industry a portable, non-contact, handheld infrared thermometer at an affordable price point.
Today, Wahl is pleased to introduce this new model to our famous line of Heat Spy® Infrared Thermometers.
These incredibly accurate and robust Heat Spy's will help you diagnose any problem, and prevent costly equipment downtime.
The variety of features enable you to select the most appropriate Heat Spy® for your application.
Features- Used for Short Range: 12:1
- Easy Aiming
- Quick Response
- Easy to Locate a Hotspot
- Includes Alarms
- 10 point memory log that can save current temperature
- MAX/MIN/AVG/AT Calculations
- Adjustable Emissivity for Better Accuracy
- Electronic Trigger Lock which Allows for Continuous Readings
Specifications
Specifications
Temperature Range
- -25° to 999° F
- -32° to 535° C
Distance to Spot Ratio
- 12:1
Spectral Range
- 5 to 14 µm
Emissivity
- Adjustable 0.10 to 1.00
Accuracy
- ± 3.6° F (± 2° C) from -4° to 212° F (-20° to 100° C)
- ± 5.4° F (± 3° C) from -25° to -4° F (-32° to -20° C
- ± 2 % from 212° to 999° F (100° to 535° C)
Repeatability
- ± 2° F (± 1° C)
Resolution
- 0.1° F (0.1° C)
Response Time
- 500 ms
Operating Temperature
- 32° to 122° F (0° to 50° C)
- 10 - 90 % RH
Storage Temperature
- 14° to 140° F (-10° to 60° C)
LCD Backlight
- Yes
Dual Display
- N/A
°F & °C Selectable
- Yes
Laser Sight Switchable
- User Selectable, Class II Laser, less than 1 mW
Auto Power Off
- Automatically after approx. 30 seconds
Maximum / Minimum/Avg/∆T
- Yes
Auto Measuring
- Yes
Audible Alarm
- Yes
10 Point Memory
- Yes
Electronic Trigger Lock
- Yes
Tripod Mount
- No
USB Data Output
- No
Type K Thermocouple
- No
Operating Software
- N/A
Power Supply
- 9 V Battery
Battery Life with Laser Off
- 15 hours for continuous operation
Dimensions
- 6.8 x 3.6 x 1.8" (173 x 93 x 45 mm)
Weight with Battery
- 7.8 oz. (220 g)
Included Accessories
- UserManual, 9 V Battery, Soft Pouch
Applications
Applications
- Quality/Non-Destructive Testing
- Electrical Troubleshooting
- Manufacturing Process Control
- Diesel/Fleet Maintenance
- Plant/Facilities Maintenance
- HVAC/Refrigeration
- Automotive Repair and Diagnostics
