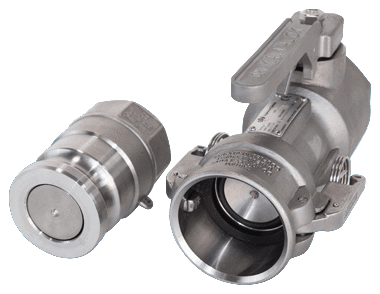

Kamvalok® Flat-face Coupler and Adaptor

Brand: OPW Engineered Systems
The Kamvalok® Flat is the next generation of OPW dry-disconnect couplings.

We’ve taken our proven, best-in-class Kamvalok and flattened the connection points.

This effectively eliminates all cavities where liquid can pool and subsequently spill upon disconnection.
Features
  • Reduce Product Loss at Disconnect by Up to 85%
  • Patent-pending Smooth, Flat-face Poppets
  • Industry-standard Locking Handle
  • Easy to Close Autolok™ Locking Arms with Spring Rings
  • Automatic Locking Arms, No Pins or Buttons
  • Vibration-resistant Twin-Kam™ Arms
  • Can be Coupled in Any Orientation - 360º
  • Automatically Shuts Off Flow if Accidental Disconnect Occurs
The Kamvalok® Flat is the next generation of OPW dry-disconnect couplings.

We’ve taken our proven, best-in-class Kamvalok and flattened the connection points.

This effectively eliminates all cavities where liquid can pool and subsequently spill upon disconnection.
Features
  • Reduce Product Loss at Disconnect by Up to 85%
  • Patent-pending Smooth, Flat-face Poppets
  • Industry-standard Locking Handle
  • Easy to Close Autolok™ Locking Arms with Spring Rings
  • Automatic Locking Arms, No Pins or Buttons
  • Vibration-resistant Twin-Kam™ Arms
  • Can be Coupled in Any Orientation - 360º
  • Automatically Shuts Off Flow if Accidental Disconnect Occurs
Close

Specifications

Brand

Type

  • Coupler
  • Adaptor

Configuration

  • Aluminum Body, Duplex Stainless-steel Internals
  • Stainless Steel Body, Duplex Stainless Steel Internals

O-Ring Seal

  • Buna-N
  • Fluorocarbon
  • PTFE/Silicone
  • EPDM
  • FFKM
  • PTFE/Fluorocarbon

Connection

  • 150 lb Flange
  • Female NPT
  • 300 lb Flange
  • Female BSPT

Construction Material

  • Aluminum Body
  • Stainless Steel Body

Size

  • 1-1/2" DN 40
  • 2" DN 50
  • 3" DN 80

Style

  • Greaseless
  • Krytox Grease
  • Keylok

AAR Numbers

  • E129504: 1600AN Series Kamvalok Adapter - Threaded
  • E129505: 1600ANF Series Kamvalok Adapter - Flanged
  • E129507: 634B/733DCL Series Kamlok/Autolok Dust Caps

CRN Number

  • OA4911.5R1 -  Ontario - 1.5", 2", 3" Aluminum and Stainless Steel Kamvalok
