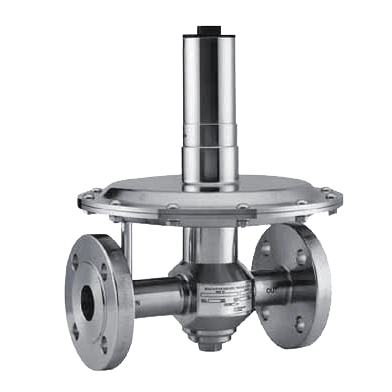

TBVS8 Back-Pressure Regulator

Brand: Swagelok Company
Features
  • Spring-Loaded pressure control
  • Diaphragm sensing mechanism
  • Diaphragm support plates allow for use in vacuum
  • Compliance with FDA/USP class VI
  • Maximum Inlet Pressure: psig: 87 (bar: 6, kPa: 599)
  • Pressure Control Range: psig: 0.07 to 7.2 (bar: 0.005 to 0.5, kPa: 0.48 to 5)
  • Operating Temperature: -20° to 100°C (-4° to 212°F)
  • Flow Coefficient: 8.35 Cv
  • Inlet and Outlet Connections: 1", ISO/BSP Parallel Thread, Female NPT, ASME Flange, DIN Flange, Sanitary Clamp
  • Materials of Construction:
    • Enclosure: 316L Stainless Steel
    • Stem: 316L Stainless Steel
    • Diaphragm: PTFE
    • O-Ring: PTFE
show more
Features
  • Spring-Loaded pressure control
  • Diaphragm sensing mechanism
  • Diaphragm support plates allow for use in vacuum
  • Compliance with FDA/USP class VI
  • Maximum Inlet Pressure: psig: 87 (bar: 6, kPa: 599)
  • Pressure Control Range: psig: 0.07 to 7.2 (bar: 0.005 to 0.5, kPa: 0.48 to 5)
  • Operating Temperature: -20° to 100°C (-4° to 212°F)
  • Flow Coefficient: 8.35 Cv
  • Inlet and Outlet Connections: 1", ISO/BSP Parallel Thread, Female NPT, ASME Flange, DIN Flange, Sanitary Clamp
  • Materials of Construction:
    • Enclosure: 316L Stainless Steel
    • Stem: 316L Stainless Steel
    • Diaphragm: PTFE
    • O-Ring: PTFE
