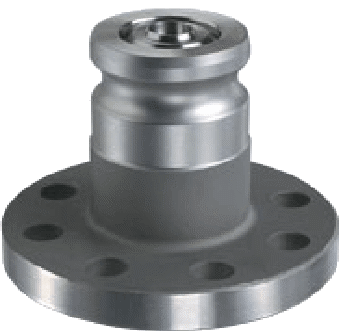

1600ANF Series Kamvalok Railcar Adaptor

Brand: OPW Engineered Systems
The OPW 1600ANF and 1600ANFT Series Railcar Adaptors are designed specifically for applications using an ANSI flange.

The OPW 1600ANF Dry Disconnect Adaptors keep hazardous chemicals and vapors in-line and out of the environment.

Rugged, yet quick and easy to install, the 1600ANF Series is ideal for closed-loop loading conversions.
Features
  • Available In 1-½”, 2” & 3” Sizes
  • Heavy-duty Construction - Available in Aluminum, and Stainless Steel Construction: Stainless Steel Corrosion Resistance Comparable to 316 Stainless Steel.
  • Wide Range of Seals Available - Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
  • Female Threads can be Fitted to Either a Male Pipe End or to a Hose Fitting
  • Spring-loaded Poppet Design Assures Fast Closing and a Tight Seal
  • Eliminates Threads - One Less Leak Point
  • The Poppet-actuated Design can Only be Opened with a Kamvalok® Coupling; Designed to Provide a Tight Seal when Closed.
  • Provides Easy Connection Access for Tank Cars, Tank Trucks, Intermodal Tanks, and In-process Operations.
  • Connects with Kamvalok® 1700 Series Dry Disconnect Couplings
  • Can be Quickly Disassembled
  • Specifically Designed for Applications Using ANSI Flanges
The OPW 1600ANF and 1600ANFT Series Railcar Adaptors are designed specifically for applications using an ANSI flange.

The OPW 1600ANF Dry Disconnect Adaptors keep hazardous chemicals and vapors in-line and out of the environment.

Rugged, yet quick and easy to install, the 1600ANF Series is ideal for closed-loop loading conversions.
Features
  • Available In 1-½”, 2” & 3” Sizes
  • Heavy-duty Construction - Available in Aluminum, and Stainless Steel Construction: Stainless Steel Corrosion Resistance Comparable to 316 Stainless Steel.
  • Wide Range of Seals Available - Buna-N, Fluorocarbon, PTFE, EPDM, Chemraz®
  • Female Threads can be Fitted to Either a Male Pipe End or to a Hose Fitting
  • Spring-loaded Poppet Design Assures Fast Closing and a Tight Seal
  • Eliminates Threads - One Less Leak Point
  • The Poppet-actuated Design can Only be Opened with a Kamvalok® Coupling; Designed to Provide a Tight Seal when Closed.
  • Provides Easy Connection Access for Tank Cars, Tank Trucks, Intermodal Tanks, and In-process Operations.
  • Connects with Kamvalok® 1700 Series Dry Disconnect Couplings
  • Can be Quickly Disassembled
  • Specifically Designed for Applications Using ANSI Flanges
Close

Specifications

Brand

Type

  • Adaptor

Configuration

  • Aluminum Body, Stainless-steel Internals
  • Stainless Steel Body, Stainless Steel Internals

O-Ring Seal

  • Buna-N
  • Fluorocarbon
  • EPDM
  • FFKM
  • PTFE/Silicone
  • PTFE/Fluorocarbon

Connection

  • Female NPT
  • 150 lb Flange
  • 300 lb Flange

Construction Material

  • Aluminum Body
  • Stainless Steel Body

Size

  • 1-1/2" FNPT
  • 2" FNPT
  • 3" FNPT

Style

  • Greaseless
  • Keylok
  • Krytox Grease
  • Sanitary Tri-Clamp

AAR Numbers

  • E129504 - 1600AN Series Kamvalok Adpater - Threaded
  • E129505 - 1600ANF Series Kamvalok Adapter - Flanged
  • E129507 -  634B/733DCL Series Kamlok/Autolok Dust Caps

CRN Numbers

  • OA4911.52 - Alberta - 1.5", 2", 3" Aluminum and Stainless Steel Kamvalok
  • OA4911.5R1 -  Ontario -  1.5", 2", 3" Aluminum and Stainless Steel Kamvalok
