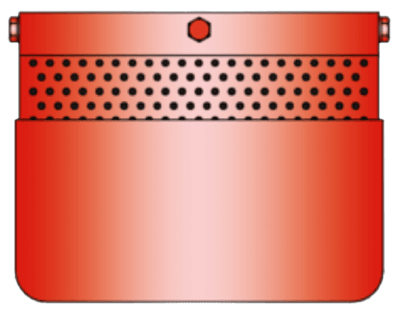

EF/V-IIB3 Detonation Flame Arrester

Brand: PROTEGO
The Protego EF/V-IIB3 detonation-safe foot valve protects the suction line in a storage tank.

The nearly service-free device is installed at the end of the emptying line within the tank.

When a pump draws, the valve opens at an approximate under pressure of psi: 0.43 (kPa: 3, mbar: 30) 12 Inches WC.

When the pump is turned off, the device functions as a check valve and prevents the line from emptying. This is very helpful when the pump is restarted.
Features
  • Almost service-free
  • The check valve makes it easier to start the pump
  • Provides protection from deflagrations and stable detonations
  • Applicable to nearly all flammable liquids
  • Meets TRbF (Technical Regulations for Flammable Liquids) 20 requirements
  • The special strainer prevents solid particles from entering
The Protego EF/V-IIB3 detonation-safe foot valve protects the suction line in a storage tank.

The nearly service-free device is installed at the end of the emptying line within the tank.

When a pump draws, the valve opens at an approximate under pressure of psi: 0.43 (kPa: 3, mbar: 30) 12 Inches WC.

When the pump is turned off, the device functions as a check valve and prevents the line from emptying. This is very helpful when the pump is restarted.
Features
  • Almost service-free
  • The check valve makes it easier to start the pump
  • Provides protection from deflagrations and stable detonations
  • Applicable to nearly all flammable liquids
  • Meets TRbF (Technical Regulations for Flammable Liquids) 20 requirements
  • The special strainer prevents solid particles from entering

Specifications

Brand

Approvals & Certifications

  • ATEX
  • IEC
  • NEC Group C

Approvals & Certifications

  • EN ISO 16852 & 16016

Enclosure, Body Material

  • Stainless Steel
  • Steel

Environmental Protection

  • Explosion-proof Group IIB3 (C MESG ≥ 0.65 mm)

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ASME B16.5

Flange Size - 1-1/4” (DN 32)

  • 1-1/4” (DN 32) - 150# ASME B16.5

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ASME B16.5

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150# ASME B16.5

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150# ASME B16.5

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ASME B16.5

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ASME B16.5

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ASME B16.5

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150# ASME B16.5

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ASME B16.5

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ASME B16.5

Flange Type

  • Raised Face (RF)
  • Smooth Finish

Gasket Material

  • Gasket (Housing): FPM
  • Gasket (Valve, Housing): PTFE

Materials of Construction

  • Valve, Strainer: Stainless Steel

Operating Pressure

  • psi: 0 to 15.9 (kPa: 0 to 110, bar: 0 to 1.1)

Operating Temperature

  • 0° to 60° C (32° to 140° F)

Pressure Range

  • Underpressure - psi: 0.43 (kPa: 3, Mbar: 30)

Pressure Type

  • Absolute
