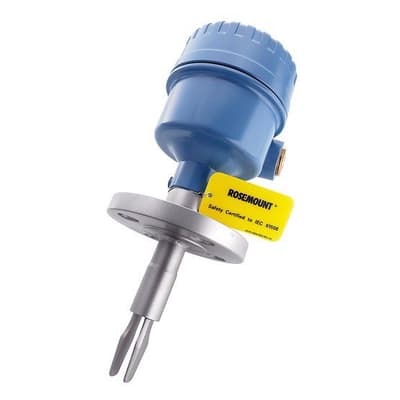

2130 Level Switch

Brand: Rosemount
Rosemount 2130 Level Switch is developed for challenging applications, tough operating conditions and safety critical environments. Its robust construction and built-in powerful diagnostics will allow you to focus on the essential part - your plant.

It is a plug-and-play device, which means that it is easy to install and does not require any advanced configuration or calibration.

It is also virtually unaffected by process conditions, which makes its measurements extremely reliable.

The Rosemount 2130 is SIL 2 certified for safety instrumented systems. It will make sure that you stay safe from overfill, while at the same time optimizing your tank usage.
Features
  • Equipped with fork health monitoring, the device realizes if maintenance is needed
  • Magnetic test point makes proof testing of the Rosemount 2130 easy
  • Adjustable switching delay enables easy handling of turbulent or splashing conditions
  • Explosion-proof/flameproof, and intrinsically safe options available
  • Fast drip fork design gives a quicker response time, especially with viscous liquids
Rosemount 2130 Level Switch is developed for challenging applications, tough operating conditions and safety critical environments. Its robust construction and built-in powerful diagnostics will allow you to focus on the essential part - your plant.

It is a plug-and-play device, which means that it is easy to install and does not require any advanced configuration or calibration.

It is also virtually unaffected by process conditions, which makes its measurements extremely reliable.

The Rosemount 2130 is SIL 2 certified for safety instrumented systems. It will make sure that you stay safe from overfill, while at the same time optimizing your tank usage.
Features
  • Equipped with fork health monitoring, the device realizes if maintenance is needed
  • Magnetic test point makes proof testing of the Rosemount 2130 easy
  • Adjustable switching delay enables easy handling of turbulent or splashing conditions
  • Explosion-proof/flameproof, and intrinsically safe options available
  • Fast drip fork design gives a quicker response time, especially with viscous liquids

Specifications

Approvals & Certifications

  • ATEX
  • CSA
  • EAC
  • FM
  • IECEx
  • INMETRO
  • NEPSI

BSP Connection

  • 1” BSPP
  • 1” BSPT
  • 1-1/2” BSPP
  • 1-1/2” BSPT
  • 2” BSPP
  • 2” BSPT
  • 2-1/2” BSPP
  • 2-1/2” BSPT
  • 3” BSPP
  • 3” BSPT
  • 3/4” BSPP
  • 3/4” BSPT
  • 4” BSPP
  • 4” BSPT

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

NACE & NIST

  • NACE MR-0175, ISO 15156, NACE MR-0103

NPT Connection

  • 1” NPT
  • 1-1/2” NPT
  • 2” NPT
  • 2-1/2” NPT
  • 3” NPT
  • 3/4” NPT
  • 4” NPT

Operating Pressure

  • psi: 0 to 1,450 (kPa: 0 to 10,000, bar: 0 to 100)

Operating Temperature

  • -70° to 260° C (-94° to 500° F)

Process Connection Style

  • Process Connection FR Flange: ASME B16.5 Class 150, 300, 600, EN 1092-1 PN 10/16/25/40/63/100

Tri-Clamp Connection

  • 1” Tri-Clover Clamp
  • 1-1/2” Tri-Clover Clamp
  • 2” Tri-Clover Clamp
  • 2-1/2” Tri-Clover Clamp
  • 3” Tri-Clover Clamp
  • 3/4” Tri-Clover Clamp
  • 4” Tri-Clover Clamp
