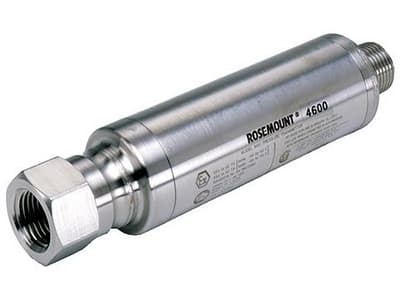

4600 Pressure Transmitter

Brand: Rosemount
Request Information
Ideal for panel mount applications, the Rosemount 4600 Oil and Gas Panel Pressure Transmitter delivers reliable, industry-standard performance. This pressure transmitter is capable of measuring high pressure ratings of up to 20,000 psi (1,379 bar) and offers a rangedown of up to 40:1 for increased flexibility.

Additionally, this device features a compact, lightweight design with an all-welded, stainless steel construction, providing a stable and robust solution that withstands harsh environments.
Features
  • Measures high pressure ratings of up to 20,000 psi (1,379 bar) for a stable and dependable solution
  • Compact, lightweight design is ideal for panel mount applications
  • All-welded stainless steel construction maximizes reliability in harsh environments
  • Up to 40:1 rangeability increases application flexibility
  • Installed 3-year stability of ±0.5% of URL minimizes maintenance costs and improves efficiency
show more
Ideal for panel mount applications, the Rosemount 4600 Oil and Gas Panel Pressure Transmitter delivers reliable, industry-standard performance. This pressure transmitter is capable of measuring high pressure ratings of up to 20,000 psi (1,379 bar) and offers a rangedown of up to 40:1 for increased flexibility.

Additionally, this device features a compact, lightweight design with an all-welded, stainless steel construction, providing a stable and robust solution that withstands harsh environments.
Features
  • Measures high pressure ratings of up to 20,000 psi (1,379 bar) for a stable and dependable solution
  • Compact, lightweight design is ideal for panel mount applications
  • All-welded stainless steel construction maximizes reliability in harsh environments
  • Up to 40:1 rangeability increases application flexibility
  • Installed 3-year stability of ±0.5% of URL minimizes maintenance costs and improves efficiency
Close

Specifications

Brand

Approvals & Certifications

  • ATEX
  • CSA
  • EAC
  • FM
  • IECEx
  • INMETRO

Communication

  • 4-20 mA HART

Diaphragm Material

  • 316L Stainless Steel
  • Alloy C-276 or Hastelloy

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X

Fill Material

  • Silicone

Measuring Range

  • Up to psig: 20,000 (kPa: 137,900, bar: 1,379) Sealed Gauge & Absolute

NACE & NIST

  • NACE

NPT Connection

  • 1/2”-14 Female NPT
  • 1/4”-18 NPT Female

Operating Temperature

  • -40° to 121° C (-40° to 250° F)

Output

  • 4-20 mA

Turndown

  • Rangedown: up to 40: 1

Wetted Materials

  • 316L Stainless Steel
  • Alloy C-276 or Hastelloy
