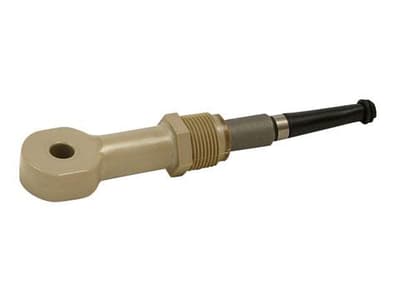

228 Toroidal Conductivity Sensor

Toroidal sensors work well in highly conductive liquids, up to about 2 S/cm (2,000,000 uS/cm).

These sensors work in dirty and corrosive applications where metal electrode sensors would otherwise fail.

A robust sensor design makes the Rosemount 228 ideal for measuring concentrations of acid, base, and salt solutions.

Features

Meet challenging application requirements with a selection of chemical resistant body options including PEEK and Tefzel
High vibration tolerance with reinforced internal metal frame design
High temperature option for process temperatures up to 200° C (392° F) and suitable for use under high pressure up to 295 psi (2135 kPa [abs])
Suitable for insertion and submersion type applications
Versatile mounting options featuring either a 3/4" Male NPT or 5/8" 11 UNC process connection
Eliminate the need to have to shut down your process when removing sensors from piping and tanks by using an optional retraction assembly kit
