Description

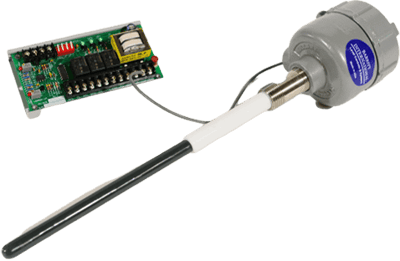

The LS8000/2 dual-point level switch can measure virtually any liquid, dry material (2 probe configuration) or interface of electrically conductive or non-conductive products.
The proprietary radio frequency (RF) balanced impedance bridge has exceptional temperature stability, thus eliminating the need to recalibrate the unit from season to season.
he LS8000 can be configured for single-point, dual-point or four-point control.
The maintenance-free transmitter is mounted in the explosion-proof head of the probe. The receiver can be mounted up to one mile from the transmitter.
Features- Field selectable Auto Fill or Auto Empty
- 10 Amp latching relay for pump control
- Solid state, no moving parts
- Simple installation and calibration
- Explosion proof housing standard
- On-board fuse protection
- User Programmable time delay
- Modular electronics easily replaced
Configure
Specifications
Specifications
Power
- 115 Vac (± 15 %) 50/60 Hz, 3 Watts Standard
- 12 Vdc, 24 Vdc or 230 Vac Optional
Output
- 10 A Resistive at 115 Vac
- 3 Relay with 1 Form C Contact SPDT
- 8 A at 230 Vac
- 5 A at 30 Vdc
On Board Fuse
- 0.5 A at 125 V
RF Frequency
- Approx. 700 kHz
Pressure
- 1,500 psi @ 75° F - 1" NPT Optional
- 300 psi @ 75° F - 3/4" NPT Standard
Temperature Range
- Teflon Sleeve: -30° to 250° F
- Probe: -30° to 340° F - HALAR
Enclosure
- Cast Aluminum, Explosion-proof - Class I, Groups C & D, Class II, Groups E, F & G
Applications
Applications
- Auto Fill/Auto Empty
- Pump Control
- High/Low Level Alarm
Liquids
- Water
- Acids/Caustics
- Fuels/Oils
- Solvents
Solids (Two Single Point Configuration Only)
- Plastic Pellets
- Sands
- Cement
- Flours
- Powders
