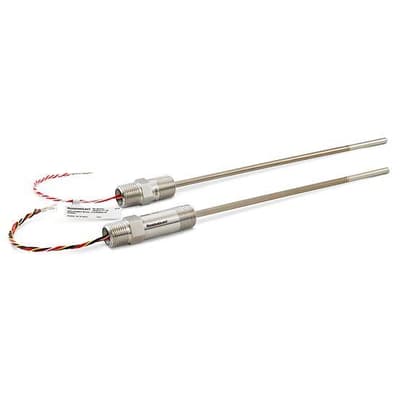

The Rosemount 214C RTD Temperature Sensor is a Pt-100, single or dual element resistant temperature detector (RTD) that covers a wide range of temperatures, from -321° to 1,112° F (-196° to 600° C).
An exceptional solution, this sensor has a thin-film and wire-wound design for application flexibility.
With many calibration options, including Class A or B sensor accuracy, this sensor also offers Callendar-Van Dusen constants for transmitter-sensor matching to provide the highest level of accuracy.Features
- Single or dual element Pt-100 RTD with thin-film or wire-wound designs meets various application requirements
- Thin film sensor engineered to withstand high vibration industrial applications
- Wire-wound design for applications requiring high accuracy, dual-elements and/or are subjected to high temperatures
- Covers a wide range of temperatures from -321° to 1,112° F (-196° to 600° C) for application flexibility
- Callendar-Van Dusen constants allow for transmitter-sensor matching and offer the highest level of accuracy
- Optional Class A accuracy ensures critical temperature measurement points meet tolerance and accuracy standards
- Adaptable design with a variety of enclosure and connection head options meet varying application demands
- Includes spring-loaded or compact spring-loaded mounting styles for adaptability
- North American approvals meet hazardous location requirements
Approvals & Certifications
Electrical - Free Leads
- 24 AWG Wire, FEP Insulated
Materials of Construction
- 316 Stainless Steel Component & Wire on Tag
- Sheath Material: 321 Stainless Steel
- Insulation Resistance: 1,000 MΩ Min. Insulation Resistance when Measured at 500 Vdc at Room Temperature
- 0.8 second, Max.
Sensor, Probe Connection
- Single or Dual, 3-Wire
- Single, 4-Wire
- ± 0.15° C (0.059) - Max.
- -196° to 600° C (-320.8° to 1,112° F)
Certificates & Approvals
Drawings & Schematics
- Type 1 Drawing: 214A RTD and Thermocouples pdf 7.4 MB
- Type 1 Drawing: Rosemount 214C Temperature Sensor 2D DXF dxf 9.1 MB
- Type 1 Drawing: Rosemount 214C Temperature Sensor 2D PDF pdf 2.6 MB
- Type 1 Drawing: Rosemount 214C Temperature Sensor 3D SAT sat 1.4 MB
- Type 1 Drawing: Rosemount 214C Temperature Sensor, 3D PDF pdf 555 KB
- Type 1 Drawing: Rosemount 214C Temperature Sensor, 3D STP stp 1.5 MB
