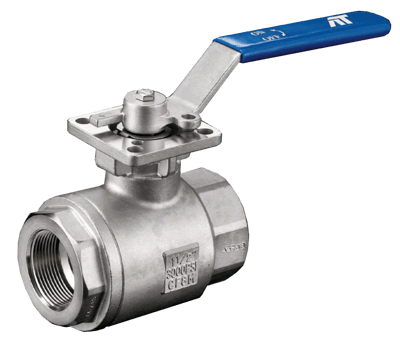

24 Series Manual Ball Valve

Brand: A-T Controls, Inc
A-T's Series 24 ball valves feature a high-quality investment cast body and end.

Superior leak protection is accomplished by using our patented “Pyramidal” stem seal system.

This advanced system protects against wear and leakage experienced by other ordinary ball valves.
Features
  • 2-piece Firesafe, High-pressure, High-cycle Design
  • Sizes 1/4” to 1-1/2” Full Port, 2” Regular Port
  • Stainless Steel - Threaded Ends - 3000 psi
  • Delrin® Seats Standard
  • ISO 5211 Direct Actuator Mount
  • Compliant to NACE MR0175
  • Blowout Proof Stem
  • Pyramidal Stem Seal Packing System
show more
A-T's Series 24 ball valves feature a high-quality investment cast body and end.

Superior leak protection is accomplished by using our patented “Pyramidal” stem seal system.

This advanced system protects against wear and leakage experienced by other ordinary ball valves.
Features
  • 2-piece Firesafe, High-pressure, High-cycle Design
  • Sizes 1/4” to 1-1/2” Full Port, 2” Regular Port
  • Stainless Steel - Threaded Ends - 3000 psi
  • Delrin® Seats Standard
  • ISO 5211 Direct Actuator Mount
  • Compliant to NACE MR0175
  • Blowout Proof Stem
  • Pyramidal Stem Seal Packing System
Close

Displaying price & availability for United States in USD Change Location

19 models matching criteria
24-TH-0200-DXX/FSE-1150C-FC
A-T CONTROLS Series 24 Automated Ball Valve, 2-Piece Regular Port, 316 SST, 2" NPT, Delrin, FSE-1150 Fail Safe Electric On/Off Actuator, 24 VDC, Fail Close show more
  • Design: 2-Piece High Performance Direct Mount, 24 Series, Firesafe
  • Size: 2" NPT
  • Port: Reduced
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Delrin Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 3000 psi
  • Actuator-Pneumatic:  Triac Spring Return Electric Fail, Clockwise, fail-safe.   8 Sec Cycle Speed, Two Position Control, 24VDC
  • Mounting Kit: FSE-1150C-FC Actuator to 2" 24 Series Ball Valve
  • Approvals: NACE MR-0175 Standard
In Stock
24-TH-0050-XXX
A-T CONTROLS Series 24 Manual Ball Valve, 2-Piece Full Port, 316 SST, 1/2" NPT, RTFE show more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 1/2" NPT
  • Port: Reduced
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 3000 psi
In Stock
24-TH-0075-XXX
A-T CONTROLS Series 24 Manual Ball Valve, 2-Piece Full Port, 316 SST, 3/4" NPT, RTFE show more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 3/4" NPT
  • Port: Reduced
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 3000 psi
In Stock
24-TH-0200-DXX
A-T CONTROLS Series 24 Manual Ball Valve, 2-Piece Regular Port, 316 SST, 2" NPT, Delrin show more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 2" NPT
  • Port: Reduced
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Delrin Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 3000 psi
In Stock
24-TH-0050-DXX
A-T CONTROLS Series 24 Manual Ball Valve, 2-Piece Full Port, 316 SST, 1/2" NPT, Delrin show more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 1/2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Standard DELRIN Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 3000 psi
In Stock
24-TH-0100-DXX
A-T CONTROLS Series 24 Manual Ball Valve, 2-Piece Full Port, 316 SST, 1" NPT, Delrin show more
  • Design: 2-Piece High Performance Direct Mount
  • Size: 1" NPT
  • Port: Reduced
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Delrin Seats

  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 3000 psi
In Stock
24-TH-0025-DXX
  • Valve Size - 1/4" NPT
  • Seat Material - Delrin
In Stock
24-TH-0038-ZXX
  • Valve Size - 3/8" NPT
  • Seat Material - PEEK Seats
In Stock
24-TH-0050-ZXX
  • Valve Size - 1/2" NPT
  • Seat Material - PEEK Seats
In Stock
24-TH-0025-ZXX
  • Valve Size - 1/4" NPT
  • Seat Material - PEEK Seats
In Stock
24-TH-0100-ZXX
  • Valve Size - 1" NPT
  • Seat Material - PEEK Seats
In Stock
24-TH-0038-DXX
  • Valve Size - 3/8" NPT
  • Seat Material - Delrin
In Stock
24-TH-0125-DXX
  • Valve Size - 1-1/4" NPT
  • Seat Material - Delrin
In Stock
24-TH-0200-ZXX
  • Valve Size - 2" NPT
  • Seat Material - PEEK Seats
In Stock
24-TH-0125-ZXX
  • Valve Size - 1-1/4" NPT
  • Seat Material - PEEK Seats
In Stock
24-TH-0075-ZXX
  • Valve Size - 3/4" NPT
  • Seat Material - PEEK Seats
In Stock
24-TH-0075-DXX
  • Valve Size - 3/4" NPT
  • Seat Material - Delrin
In Stock
24-TH-0150-DXX
  • Valve Size - 1-1/2" NPT
  • Seat Material - Delrin
In Stock
24-TH-0150-ZXX
  • Valve Size - 1-1/2" NPT
  • Seat Material - PEEK Seats
In Stock
Close
Close

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 2” NPT Female
  • 3/4” NPT Female
  • 3/8” NPT Female

Port

  • Full
  • Reduced (Standard, Regular)

Pressure Rating

  • psi: 3,000

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • Delrin
  • PEEK

TA-Luft Certified

  • No

Trim Material

  • 316 Stainless Steel

Valve Type

  • Manual
