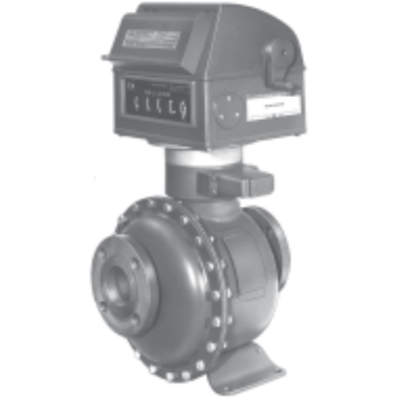

Brodie Mechanical Birotor, B05x

Price
Request a Quote
Stock
In Stock
Description
  • Connections: 2" NPT Companion
  • Max Pressure: 150 psi (10.3 bar)
  • Volume: 1.7 ft³ (0.05 m³)
  • Connections: 2" NPT Companion
  • Max Pressure: 150 psi (10.3 bar)
  • Volume: 1.7 ft³ (0.05 m³)

Specifications

Enclosure, Body Material

  • Body & End Covers: Cast Iron
  • Steel

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI
  • 2” (DN 50) - 300# ANSI
  • 2” (DN 50) - 600# ANSI
  • 2” (DN 50) - PN 100
  • 2” (DN 50) - PN 16
  • 2” (DN 50) - PN 40
  • 2” (DN 50) - PN 64

NPT Connection

  • 2” NPT

O-Ring Material

  • Viton

Pressure Range

  • bar: 0 to 102
  • kPa: 0 to 10,200
  • psi: 0 to 1,480

Housing

  • Welded Steel Construction Combin- ing Steel Castings and Drawn Steel Plate

Rotors

  • Aluminum

Rotor Shafts

  • E.T.D 150

Rotor Bearings

  • Stainsless Steel

Body and End Covers

  • Cast Iron

Body

  • Steel

O-Ring

  • Viton (Standard)

Drive Shafts

  • Stainless Steel

Drive Gears

  • Stainless Steel

Ball Bearings

  • Stainless Steel
