Description

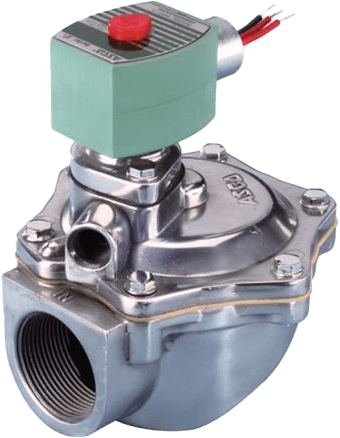

The ASCO Series 353, also known as 8353, pulse valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems.
With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air.
This results in energy savings for the user.
The valve stands out for its long life, high peak pressure, extended temperature range, and faster installation with the patented Quick Mount Clamp connection.
Features- Extremely fast open / close response time
- High peak pressure for more effective bag cleaning
- High flow Cv(s) to 140 m3h for effective bag cleaning
- Quick mount Clamp connection eliminates thread cutting and separate sealing
- Integral pilot has molded epoxy coils with available options
- Valves may be mounted in any position
- Global Ex approvals; ATEX, IEC EX, NEPSI, CUTR, KOSHA, UL, CSA
- Available will all Explosion proof solenoids: NEMA, Ex d, Ex mb, Ex e mb
- Available in a low temperature version, which is suitable for use at temperatures down to -40° C, as well as a high temperature version which is suitable up to + 140° C
Inventory
Displaying prices & availability for Ohio, United States 43201 in USD. Change location.
Models matching criteria: 2
Out of Stock
ASCO™ 8353G041 AC120/60, 110/50D view more
Valve Function
2 way - 2/2 Normally Closed
Media
Air, Inert Gas
Min Operating Press. (Air)
5
Min Operating Pressure (PSI)
5
Pipe/Port Size
1"
Body Material
Aluminum
Out of Stock
Specifications
Specifications
Brand
Valve Actuation
- Solenoid, Solenoid - Air Pilot
Body Material
- Aluminum
Media
- Air
Pipe / Port Size
- 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Port Type
- NPTF, G-Thread, Quick Mount Clamp Connection
Function
- 2-Way - 2/2 Normally Closed
Flow
- From 6.0 Cv to 14.0 Cv
- Over 14.0 Cv
- From 5.19 to 12 Kv
- Over 12 Kv
Voltage
- 24 AC, 110 AC, 115 AC, 120 AC, 208 AC, 220 AC, 230 AC, 240 AC, 440 AC, 480 AC /50, 60 Hz
- 24V DC
Operating Environment
- Hazardous, Indoor, Outdoor
Standards & Regulations
- Class I Div 1, Class I Div 2, Class II Div 1, Class II Div 2, Type 1, Type 2, Type 3, Type 3R, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL, CSA, ATEX Zone 1-21, ATEX Zone 2-22
Temperature Range
- -40 to 140° F (-4 to 284° F)
Documentation
Documentation
Data Sheets
Product Manuals
- ASCO Pulse Valves Series 353 - Integral Pilot pdf 3.5 MB
- European Instruction Manual: Series 353 Dual Stage Pulse Diaphragm Valves pdf 888 KB
- European Instruction Manual: Series 353 Full Immersion Pulse Tank System pdf 228 KB
- European Instruction Manual: Series 353 Piston/ Diaphragm Type Power Pulse Valves pdf 680 KB
- European Instruction Manual: Series 353 Piston/ Diaphragm Type Power Pulse Valves pdf 519 KB
- European Instruction Manual: Series 353 Piston/Diaphragm Type Power Pulse Valves 3/4 to 1 pdf 797 KB
- European Instruction Manual: Series 353 Power Pulse Valves pdf 470 KB
- European Instruction Manual: Series 353 Power Pulse Valves Integral Pilot pdf 766 KB
- European Instruction Manual: Series 353 Power Pulse Valves Remote Pilot pdf 687 KB
- European Instruction Manual: Series 353 Remote Pilot Operated with Quick Mount Connection pdf 840 KB
- European Instruction Manual: Series 353 Remote Pilot-Operated Dual Stage Pulse Diaphragm Valves pdf 913 KB
- European Instruction Manual: Series 353 Remote Pilot-Operated Single Stage Pulse Diaphragm Valves pdf 495 KB
- European Instruction Manual: Series 353 Remote Pilot-Operated Single Stage Pulse Diaphragm Valves pdf 1.0 MB
- European Instruction Manual: Series 353 Single Stage Pulse Diaphragm Valve pdf 851 KB
- European Instruction Manual: Series 353 Single Stage Pulse Diaphragm Valves pdf 853 KB
- I&M Sheet: NF WSNF Flameproof Solenoid Operator | ASCO pdf 1.4 MB
- Manual: Pulse Valves Series 353 - Remote Pilot | ASCO pdf 2.9 MB
- Manual: Series 353 Pulse Valve | ASCO pdf 1.8 MB
- Manual: Series 353 Pulse Valve | ASCO pdf 1.4 MB
- Manuals & Guides: NF WSNF Flameproof Solenoid M12 Operator | ASCO pdf 1.5 MB
Catalogs
- Catalog Page: Series 353 Immersion Type size 3 & 3.5 inch | ASCO - AP pdf 1.3 MB
- Catalog: 3" Immersion Pulse Valve | ASCO - AP pdf 1.2 MB
- Catalog: 353 Dual Stage Integral Pulse Valve | ASCO - EMEA pdf 372 KB
- Catalog: 353 Dual Stage Remote Pulse Valve | ASCO - EMEA pdf 251 KB
- Catalog: 353 Immersion Piston Pulse Valve 3" | ASCO - AP pdf 638 KB
- Catalog: DCV Series 353K for dust collector systems | ASCO - EMEA+APAC pdf 2.7 MB
- Catalog: Dust Collector Main Pulse | ASCO pdf 433 KB
- Catalog: EM/WSEM Operator | ASCO - EMEA pdf 772 KB
- Catalog: Main Pulse Valves with Integral Fittings - Aluminum - Series 8353 pdf 236 KB
- Catalog: PV Operators for Potentially Explosive Atmospheres | ASCO pdf 593 KB
- Catalog: Series 353 Integral Pilot SS 3/4" to 1" | ASCO - APAC pdf 227 KB
- Catalog: Series 353 Integral Pilot SS Dual Stage | ASCO - APAC pdf 593 KB
- Catalog: Series 353 Pulse Valve Dust Collector FPM | ASCO - EMEA pdf 925 KB
- Catalog: Series 353K for Dust Collector Systems | ASCO - Americas pdf 2.1 MB
- Catalog: X353 3" SS Piston Pulse Valve | ASCO pdf 579 KB
- Catalog: X353 Low Cu&Zn Pulse Valve size 1"&1.5" | ASCO - APAC pdf 418 KB
