Images are representations only.

793-A(Waterflood)

Series: 790 Series Vane Meter Brand: Brodie International

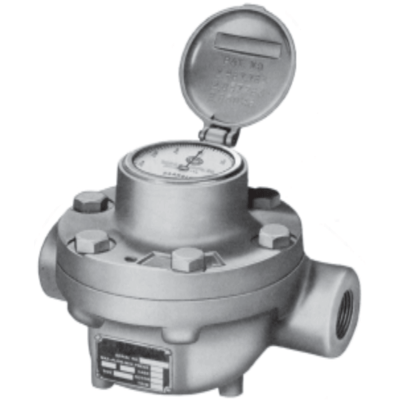

Brodie Vane Meter, 790 Series

Price
Request a Quote
Stock
In Stock
Request Information
  • Size: 1"
  • Accuracy: ±2.5%
  • Working Pressure: 5000 psi
  • Capacity: 7.5 – 75 BPH / 1.1 to 11.9 M3/H
  • Connection: Female NPT
  • Sealed Register: Barrels and M3
  • Size: 1"
  • Accuracy: ±2.5%
  • Working Pressure: 5000 psi
  • Capacity: 7.5 – 75 BPH / 1.1 to 11.9 M3/H
  • Connection: Female NPT
  • Sealed Register: Barrels and M3
Close

Specifications

Brand

Enclosure, Body Material

  • Ductile Iron

Materials of Construction

  • Rotor: Glass-Filled Polypropylene

NPT Connection

  • 1” NPT Female

O-Ring Material

  • Buna-N

Wetted Materials

  • Rotor Shaft & Other Wetted Parts: 316 Stainless Steel

Flow Capacities

  • 7 to 75 BPH (1.1 - 11.9 M3/Hr.) - 793
  • 3 to 30 BPH (.45 - 4.5 M3/Hr.) - 792

Ratings

  • Flanges: 1” Female NPT - (Inlet and Outlet)

Pressure Drop

  • 20 psi (138 kPa) at Max. Flow - 793
  • 5 psi (34.5 kPa) at Max. Flow - 792

Maximum Working Pressure

  • 5,000 psi (34,500 kPa)

Maximum Temperature

  • 180° F (82° C)

Accuracy

  • ± 2.5 % over 10 to 1 range

Repeatability

  • ± 0.1 %

Viscosity

  • Maximum: 220 S.S.U.
Close
